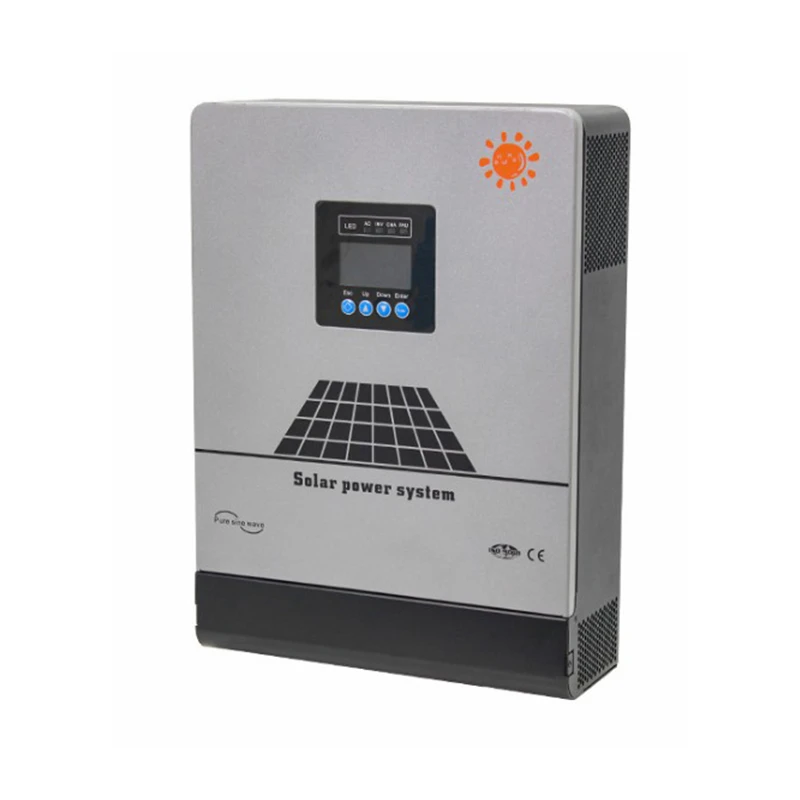

PV invertor gibrid
Ta'rif
Texnik parametrlar
Mahsulotga umumiy nuqtai:
Bu ko'p funktsiyali inverter/zaryadlovchi bo'lib, portativ o'lchamdagi uzluksiz quvvatni ta'minlash uchun inverter, quyosh zaryadlovchi va batareya zaryadlovchi funktsiyalarini birlashtiradi. lts keng qamrovli LCD displey batareyani zaryadlash oqimi, AC/quyosh zaryadlovchi qurilmasi ustuvorligi va turli ilovalarga asoslangan qabul qilinadigan kirish kuchlanishi kabi foydalanuvchi tomonidan sozlanishi va oson kirish mumkin bo'lgan tugmalar ishlashini taklif etadi.
Asosiy xususiyatlar:
Sof sinus to'lqin inverteri;
Maishiy texnika va shaxsiy kompyuterlar uchun sozlanishi mumkin bo'lgan kirish kuchlanish diapazoni orqali;
LCD sozlamalari;
LCD sozlamalari orqali ilovalarga asoslangan sozlanishi batareya zaryadlash oqimi;
LCD sozlamalari orqali sozlanishi mumkin bo'lgan AC/Quyosh zaryadlovchi ustuvorligi;
Tarmoq kuchlanishiga yoki generator quvvatiga mos keladi;
AC qayta tiklanayotganda avtomatik qayta ishga tushirish;
Haddan tashqari yuk / Haddan tashqari harorat / qisqa tutashuvdan himoya qilish;
Optimallashtirilgan batareya ishlashi uchun aqlli batareya zaryadlovchi dizayni;
Sovuq ishga tushirish funksiyasi

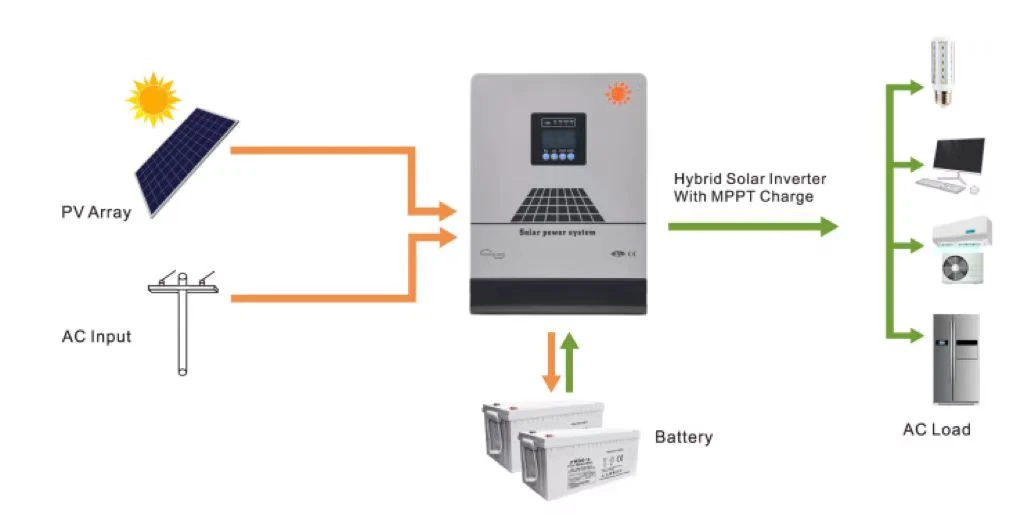

Ilova diagrammasi:
Texnik ko'rsatkichlar:
|
Model |
ED-NKH-3KVt |
ED-NKH-5KVt |
|
Nominal quvvat |
3000W |
5000W |
|
Kiritish |
||
|
Kuchlanishi |
208VAC/220VAC/230VAC/240VAC |
|
|
Tanlanadigan kuchlanish diapazoni |
170-280VAC(Shaxsiy kompyuterlar uchun) |
|
|
90-280VAC(Maishiy texnika uchun) |
||
|
Chastota diapazoni |
50Hz/60Hz (Avtomatik sezish) |
|
|
Chiqish |
||
|
AC kuchlanishni tartibga solish (Batareya rejimi) |
208VAC/220VAC/230VAC/240VAC 5% |
|
|
Kuchli kuchlanish |
6000VA |
10000VA |
|
Samaradorlik (Peak) PV dan INVgacha |
97% |
|
|
Samaradorlik (Peak) Batareyadan INVgacha |
94% |
|
|
Transfer vaqti |
10 ms |
|
|
Overlord salohiyati |
1min@102%-110%yuklanish,10s@110%-130%yuklanish, |
|
|
3s@130%-150%Load,0.2s@>150% yuk |
||
|
Batareya va AC zaryadlash |
||
|
Batareya kuchlanishi |
24VDC |
48VDC |
|
Suzuvchi zaryad kuchlanishi |
27VDC |
54VDC |
|
Haddan tashqari zaryaddan himoya qilish |
32VDC |
64VDC |
|
Maksimal zaryad oqimi |
60A |
80A |
|
PV zaryadlash |
||
|
Maksimal PV qator quvvati |
1500W |
5500W |
|
MPPT diapazoni ish kuchlanishi |
30-115VDC |
120-430VDC |
|
Maksimal PV massivi ochiq tutashuv kuchlanishi |
||
|
145VDC |
450VDC |
|
|
Maksimal zaryad oqimi |
60A |
80A |
|
Maksimal samaradorlik |
98% |
|
|
AC+PV zaryadlash |
||
|
Maksimal zaryad oqimi |
120A |
80A |
|
Jismoniy |
||
|
Hajmi D*W*H(mm) |
439*320*128 |
|
|
Sof vazn (kg) |
8 |
9.2 |
|
Aloqa interfeysi |
USB/RS232/GPRS/WIFI |
|
|
Opera Ting muhiti |
||
|
Namlik |
5% dan 95% gacha nisbiy namlik (kondensatsiyalanmagan) |
|
|
Ishlash harorati |
0 daraja -55 daraja |
|
|
Saqlash harorati |
-15 daraja -60 daraja |
|
